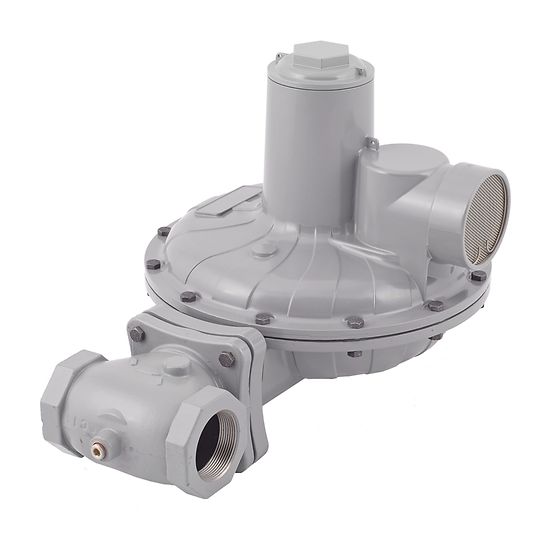

FISHER调压阀LOC105 CS800IR液化气调压阀

Fisher CS800 系列直接作用式簧压调压器可以满足商用和轻工业设施中的多种减压应用。 该调压器具有很大的灵活性，是因为这种调压器提供有多种阀体尺寸和端部连接方式、出口压力设置、阀孔尺寸以及内取压或外取压选项。 除了应用上的灵活性，CS800 系列还提供多种过压保护选项，能够满足您的应用需求。广州奥丽斯特燃气设备有限公司咨询电话：零贰零-捌贰叁贰玖陆贰伍，壹叁柒壹零叁陆壹贰陆零/13710361260-陆熙。

FISHER CS800系列调压器功能

流量优化阀瓣可为您的应用提供最大流量

过压保护解决方案数量行业最优

有多种阀体尺寸和端部连接方式可供选择

提供灰铸铁、球墨铸铁和钢质阀体材料选择

固定系数/压力系数测量 (PFM) 精度功能

仅使用标准工具即可调节压力和拆卸阀孔

维护简单

FISHER CS800系列调压器规格

阀体尺寸和端面连接方式1-1/4、1-1/2 和 2 NPT，Rp 2

NPS 2 / DN 50 / CL125FF / CL150 FF / CL150 RF

NPS 2 / DN 50 / PN 10/16 / PN16

允许的最大入口压力紧急：175 psig / 12.1 bar最大出口控制压力紧急（外壳）：15 psig / 1.0 bar

要避免内部零件损坏：3 psig / 0.21 bar 超出出口压力设置的差压

阀孔尺寸1/4-in / 6.4 mm ，3/8-in / 9.5 mm ，1/2-in / 13 mm ，5/8-in / 16 mm ，3/4-in / 19 mm ，7/8-in / 22 mm，1-in / 25 mm

1-3/8-in / 35 mm

出口压力范围3.5 in c.w. 至 10 psig / 9 至 0.69 bar

温度适用范围-20 至 150°F / -30 至 66°C

流通能力最高 36 270 SCFH / 974 Nm3/h

单位名称：广州奥丽斯特燃气设备有限公司

联系方式：陆熙020-82329625，13710361260

邮件地址：1318120303@qq.com

单位地址：广东省广州市天河区珠村东环路110号珠园大厦402室

Fisher CS800 Series direct-operated, spring-loaded regulators provide pressure-reducing applications for commercial and light industrial installations. This flexibility is provided by the numerous body sizes and end connections, outlet pressure settings, orifice sizes, as well as the option for internal or external pressure registration. In addition to application flexibility, the CS800 Series offers multiple overpressure protection options to meet your demands on application requirements.

Features

Flow Optimized Disks provide the Maximum Flow for your Application

Largest number of Overpressure Protection Offerings in the Industry

Wide Variety of Body Sizes and End Connections

Body Materials Available in Gray Cast Iron, Ductile Iron and Steel

Fixed Factor/Pressure Factor Measurement (PFM) Accuracy Capabilities

only Standard Tools required for Pressure Adjustment and Orifice Removal

Simplified Maintenance

Specifications

Body Sizes and End Connection Styles

1-1/4, 1-1/2, and 2 NPT
Rp 2
NPS 2 / DN 50 / CL125FF / CL150 FF / CL150 RF
NPS 2 / DN 50 / PN 10/16 / PN16

Maximum Allowable Inlet Pressure

Emergency: 175 psig / 12.1 bar

Maximum Outlet Control Pressure

Emergency (Casing): 15 psig / 1.0 bar
To Avoid Internal Parts Damage: 3 psig / 0.21 bar differential above outlet pressure setting

Orifice Sizes：1/4-inch / 6.4 mm ，3/8-inch / 9.5 mm ，1/2-inch / 13 mm ，5/8-inch / 16 mm ，3/4-inch / 19 mm ，7/8-inch / 22 mm
1-inch / 25 mm，1-3/8-inches / 35 mm

Outlet Pressure Range

3.5-inches w.c. to 10 psig / 9 to 0.69 bar

Pressure Registration

Internal or External

External Registration Connection

3/4 NPT

Temperature Capabilities

-20 to 150°F / -30 to 66°C

Capacity

Up to 36 270 SCFH / 974 Nm3/h
